TB64-M00-01
Categories: Linear Movement Profiles, Structural Aluminium Extrusions

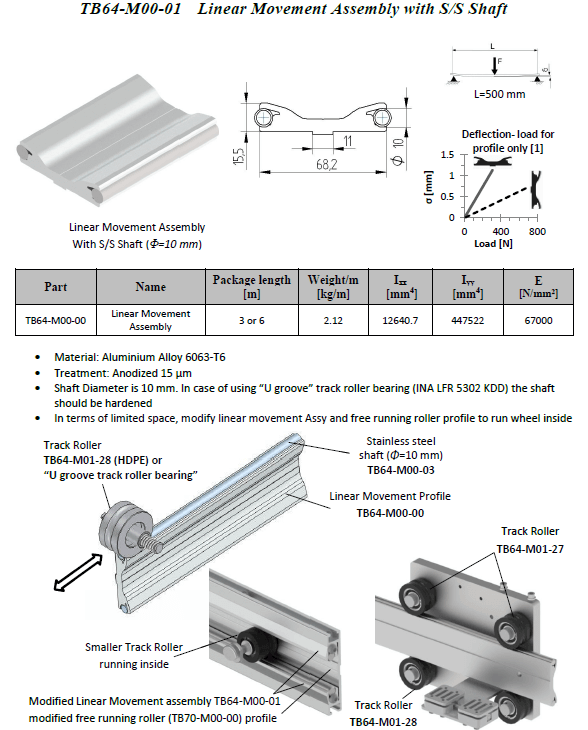

Linear movement assembly.
Parts sold separately.
(If no price, click the request price button below to enquire.)
Additional Information
| Features | Shaft diameter is 10mm. In case of using "U groove" track roller bearing (INA LFR 5302 KDD) the shaft should be hardened. In terms of limited space, modify linear movement Assy and free running roller profile to run wheel inside. |
|---|---|
| Material | Alluminium Alloy 6063-T6 |
| Treatment | Anodised 15 um |
