| Material | Alluminium Alloy 6063-T6 |
|---|---|
| Treatment | Anodised 15 um |
| Application | To be used wit a shaft (MIN DIA = 25mm, Bore hole diameter = 28mm for bearing). Machining is needed to fit linear bearing or JUM bearing. Linear bearing and/or JUM bearing to be used to mount a shaft (see illustration on the left). |
Linear Movement Profiles, Square & Rectangular Structural Profiles, Structural Aluminium Extrusions

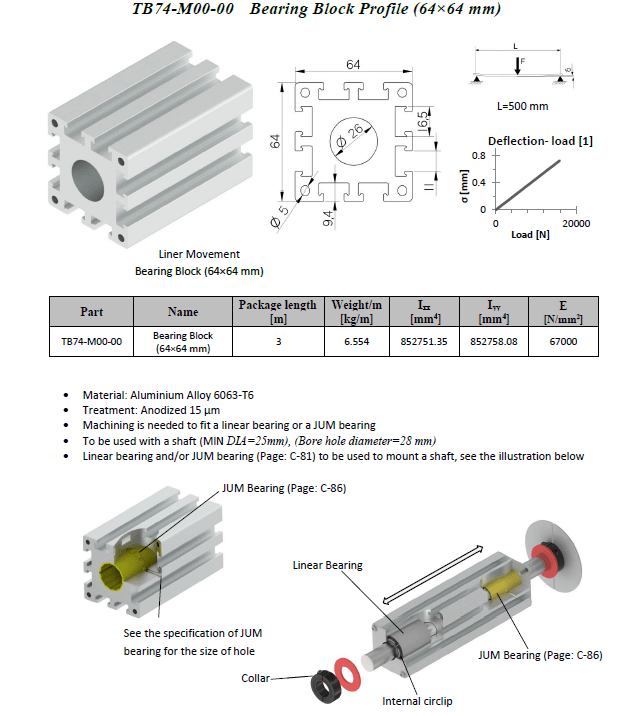

TB74-M00-00
Bearing Block (64mm x 64mm)
