TB22-M00-00
Bearing block (50mm x 50mm)
Price on request.
(If no price, click the request price button below to enquire.)
Additional Information
| Material | Alluminium Alloy 6063-T6 |
|---|---|
| Treatment | Anodised 15 um |

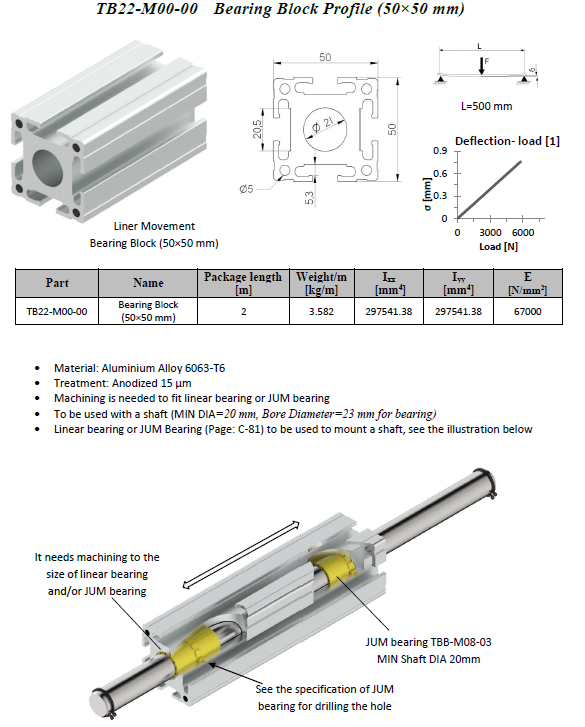

| Application | To be used wit a shaft (MIN DIA = 20mm, Bore Diameter = 23mm for bearing). Machining is needed to fit linear bearing or JUM bearing. Linear bearing or JUM bearing to be used to mount a shaft (see illustration on the left). |
