| Length | 3m or 6m |
|---|---|
| Features | Light duty conveyer which used with 82.5mm slat chain, minimum supplied length is 3000 mm. |
| Material | Aluminum 6063-T6 |
| Application examples | Packaging industries and light weight products conveying. |
| Can be used with | 82.5mm Slat chain Min radius 200mm (TBB-M04-01) and/or Min Radius 500mm (TBB-M04-02) |
Conveyor Assembly
TB11-M00-01
Conveyor assembly slat chain 82.5mm.
6m Available on request.

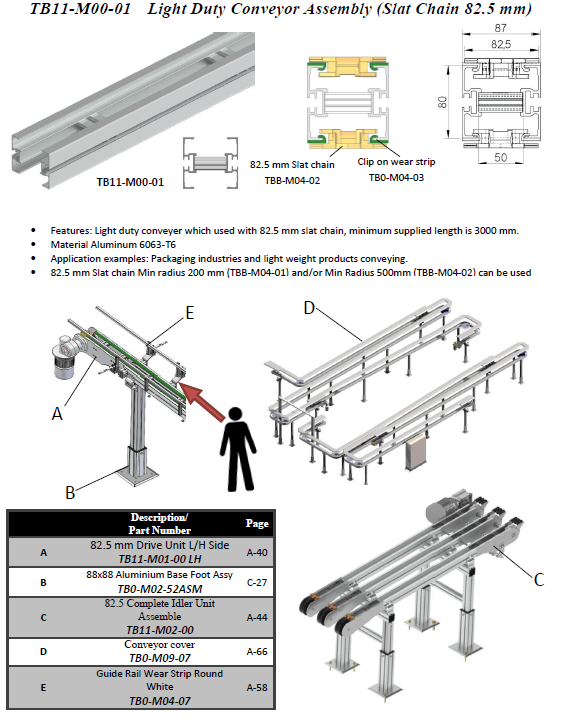

* Extra parts A,B,C, D and E sold separately (view in diagram on left).
