TB11-M00-00
Category: Conveyor Assembly

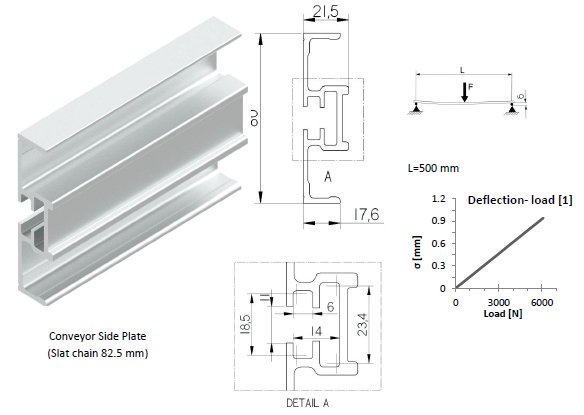

Conveyor side plate chain 82.5mm
6m Available on request.
(If no price, click the request price button below to enquire.)
Additional Information
| Weight | 1.204 kg |
|---|---|
| Length | 3m, 6m |
| Features | Used to build a light duty conveyer with an 82.5mm slat chain. It can also be used to build a customised size mattop conveyer. |
| Material | Aluminium Alloy 6063-T6 |
| Treatment | Anodized 15 um |
| Can be used with | 82.5mm Slat chain Min radius 200mm (TBB-M04-01) and/or Min radius 500mm (TBB-M04-02) |
