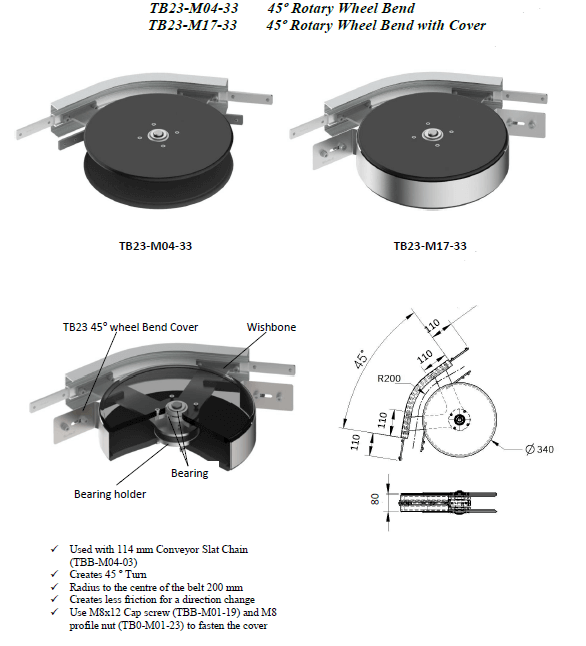

| Features | Use M8x12 Cap screw (TBB-M01-19) and M8 profile nut (TBo-M01-23) to fasten the cover. Creates less friction for a discretion change. Creates 45° turn. |
|---|---|
| Radius to center of belt | 200mm |
| Used with | 114mm Conveyer Slat Chain (TBB-M04-03) |
| Features | Use M8x12 Cap screw (TBB-M01-19) and M8 profile nut (TBo-M01-23) to fasten the cover. Creates less friction for a discretion change. Creates 45° turn. |
|---|---|
| Radius to center of belt | 200mm |
| Used with | 114mm Conveyer Slat Chain (TBB-M04-03) |
TB23-M17-33
