TB23-M17-21
Category: Conveyor Bends
Wheel bend 135° (114mm Slat chain)
With cover.

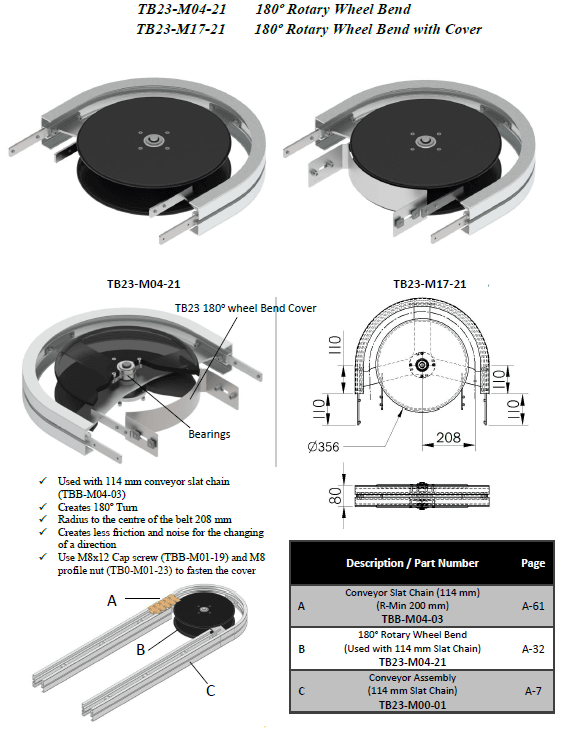

Parts A,B and C sold separately (refer to diagram on the left)
(If no price, click the request price button below to enquire.)
Additional Information
| Features | Use M8x12 Cap screw (TBB-M01-19) and M8 profile nut (TB0-M01-23) to fasten the cover. Creates less friction and noise for a discretion change. Creates 180° turn. |
|---|---|
| Radius to center of belt | 208mm |
| Used with | 114mm Conveyer Slat Chain (TBB-M04-03) |
