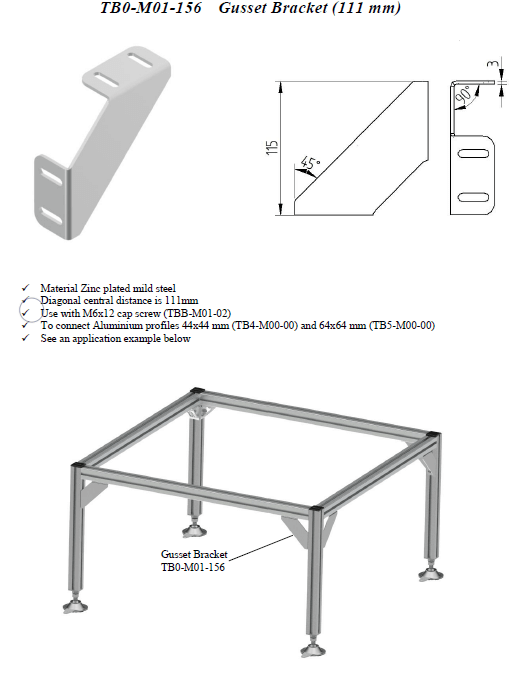

| Material | Zinc plated mild steel |
|---|---|
| Treatment | Anodised 15um |
| Features | Diagonal central distance is 111mm. Use with M6x12 cap screw (TBB-M01-02). To connect Aluminium profiles 44×44 mm (TB-M00-00) and 64×64 mm (TB5-M00-00). |
| Material | Zinc plated mild steel |
|---|---|
| Treatment | Anodised 15um |
| Features | Diagonal central distance is 111mm. Use with M6x12 cap screw (TBB-M01-02). To connect Aluminium profiles 44×44 mm (TB-M00-00) and 64×64 mm (TB5-M00-00). |
TB0-M01-156
