TB0-M01-142
Categories: Brackets & Fasteners, Profile Joint Plates

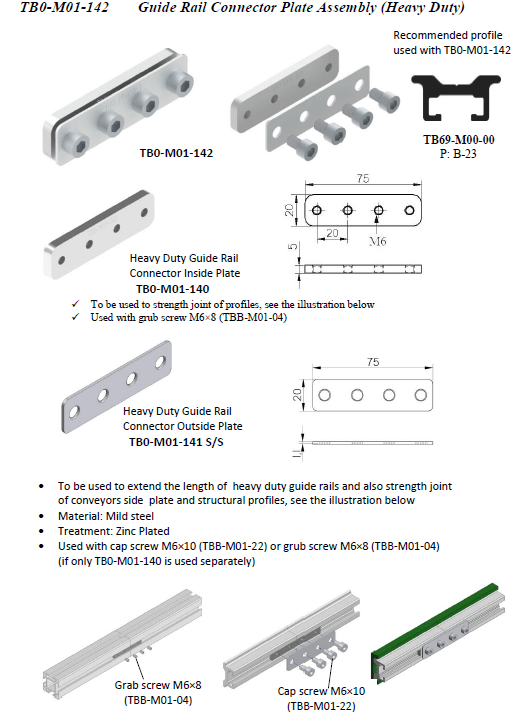

Guide rail connector plate assembly
(Heavy duty)
Parts sold separately.
(If no price, click the request price button below to enquire.)
Additional Information
| Material | Mild steel |
|---|---|
| Treatment | Zinc plated |
| Application | To be used to extend the length of the heavy duty guide rails and strengthen joint of conveyors side plate and structural profiles. Used with cap screw M6x10 (TBB-M01-22) or grub screw M6X8 (TBB-M01-04) (if only TB0-M01-140 is used separately). |
